ET |
The 3 phase AC generators are manufactured in sizes 5 to 13 Kva.
The physical dimensions are equal to the 100 series.
The voltage is controlled by a compound transformer.
The generator is also equipmment with excitation brushes.
Electrical characteristics : | Referred to following conditions: enviromental temp. <40° C, height < 1000 m a.s.l., continuous duty S1, cos pf=0.8 |
Technical Information |
120/208 V* 60 Hz 3600RPM | |||||||
Type |
KvA |
% Eff |
Air Movement |
Noise (dBA) |
B3/B14 Weight |
J609 |
|
ET 4 | 5 | 73.5 | 5.3 | 60 | 77 | 27.6 | 25.1 |
ET 5.5 | 6.9 | 76 | 5.3 | 60 | 77 | 30.8 | 28.3 |
ET 7 | 9 | 80 | 5.3 | 60 | 77 | 34.8 | 32.3 |
ET 8.5 | 10.5 | 82 | 5.2 | 60 | 77 | 39.3 | 36.8 |
ET 10 | 13 | 84 | 5.2 | 60 | 77 | 43.7 | 41.2 |
* Other voltages available.

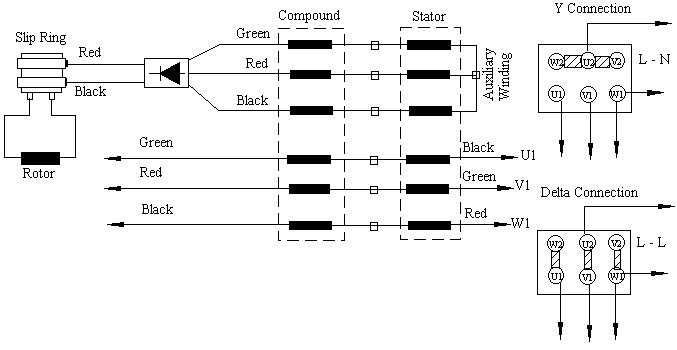

Electrical Diagram |

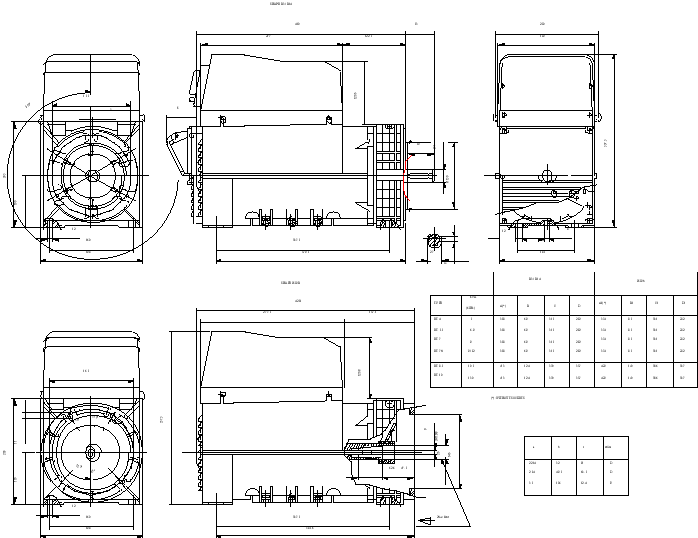

Overall Dimensions |

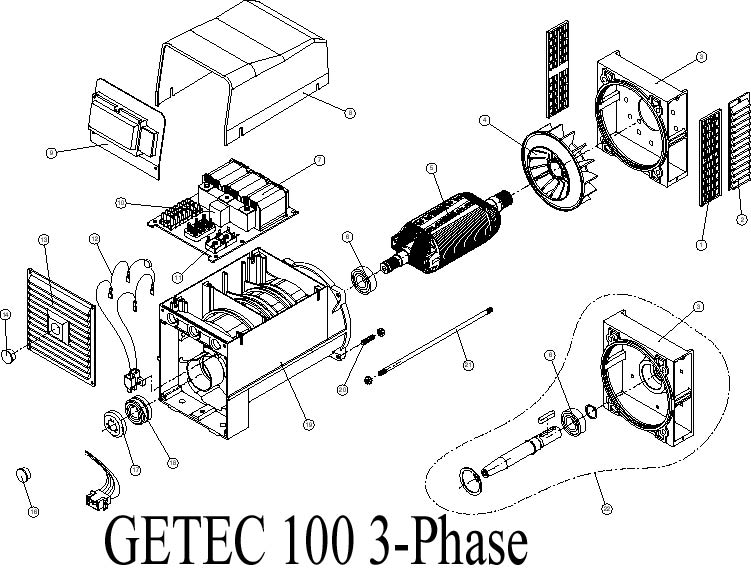

Exploded View & Parts List |
Item # | GETEC # | Description |
1 | Front grid IP21 | |
2 | Front grid IP23 | |
3a | Front Shield J609A | |
3b | Front Shield J609B | |
3c | Front Shield B3-B14 | |
4a | Fan | |
4b | Fan with hole for J609B | |
5a | Rotor 100 - 3 ph 5.0 | |
5b | Rotor 100 - 3 ph 6.9 | |
5c | Rotor 100 - 3 ph 9.0 | |
5d | Rotor 100 - 3 ph 10.5 | |
5e | Rotor 100 - 3 ph 13.0 | |
6 | Bearing | |
7a | Compound for 100 - 3 ph 5.0 208V | |
7b | Compound for 100 - 3 ph 6.9 208V | |
7c | Compound for 100 - 3 ph 9.0 208V | |
7d | Compound for 100 - 3 ph 10.5 208V | |
7e | Compound for 100 - 3 ph 13.0 208V | |
8a | Black top cover | |
8b | Red top cover | |
9a | Blank panel | |
9b | Three phase panel | |
10 | EMC filter | |
11 | Field rectifier bridge | |
12 | Brush-holder & brushes & varistor | |
13 | End cover | |
14 | Tap | |
15a | Blank end cover | |
15b | Three phase panel | |
16 | Tap | |
17 | Slip ring cover | |
18 | Slip ring | |
19a | Housing M & Stat. 100 - 3 ph 5 208 V | |
19b | Housing M & Stat. 100 - 3 ph 6.9 208 V | |
19c | Housing M & Stat. 100 - 3 ph 9 208 V | |
19d | Housing M & Stat. 100 - 3 ph 10.5 208 V | |
19e | Housing M & Stat. 100 - 3 ph 13 208 V | |
20 | Stay bolt - M8 * 30 | |
21 | Shaft stay bolt | |
22 | KIT : from J609B to B3/B14 |
