KS
140-2
2 Pole
1 Phase
3600 RPM
|
|
KS |
| The KS 140 M Series are synchronous self-regulating brushless generators. | |
| Operating system : | The self excitation is obtained through a stator winding angularly positioned with respect to the power winding and charged by a capacitor; the load voltage self-compensation is due to the rectification of the voltage induced by the inverse field in the rotor. |
| Electrical characteristics : | Referred to following conditions: enviromental temp. <40° C, height < 1000 m a.s.l., continuous duty S1, cos pf=1 |
| Short circuit current : | More than 3 times the rated full load current. |
| Technical Information |
120 / 240 V 60 Hz 3600 RPM |
||||||||
| Type | KvA | % Eff | Driving Power 4/4 kW |
Air Movement m3 / min |
Noise (dBA) 7m / 1m |
B3/B14 Weight (kg) |
SAE Weight (kg) |
|
| EK 140 S 2 B | 10.5 | 74 | 14 | 6.6 | 64 | 81 | 50 | 66 |
| EK 140 S 2 C | 13.5 | 77 | 17.5 | 6.6 | 64 | 81 | 55 | 71 |
| KS 140 M M2 A | 18.5 | 80 | 23 | 6.6 | 64 | 81 | 70 | 86 |
| KS 140 M M2 B | 22 | 82 | 26.5 | 6.6 | 64 | 81 | 90 | 106 |
| KS 140 L M2 A | 25 | 84 | 29.5 | 6.6 | 64 | 81 | 98 | 114 |
| KS 140 L M2 B | 31 | 86 | 36 | 6.6 | 64 | 81 | 117 | 133 |

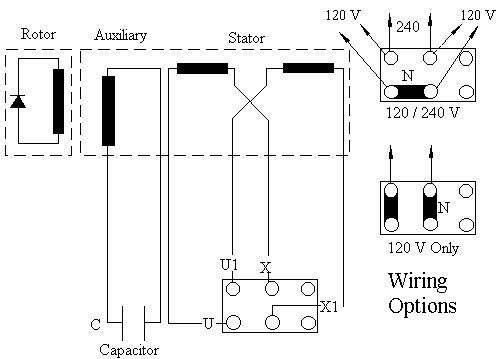

| Electrical Diagram |
