DESCRIPTION: NECKAR II

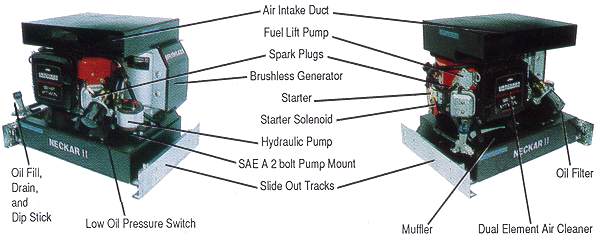

The GETEC Neckar II utility AC generator
line is designed for easy access serviceability, low
noise, and long life. All service parts, such as oil dip
stick, oil filter, oil dragin, air cleaner element, spark
plugs, valves, starter, starter solenoid, hydraulic pump,
gas filter, and belt are easily accessible without
removing the unit from its mount.
|
|
Routine maintenance
can be accomplished in minutes. The set is equipped with
a Briggs & Stratton 18HP Vanguard overhead valve
V-Twin engine. The engine features include O.H.V. design
for more power per voltume of displacement, cooler
operation, less carbon buildup, reduced oil consumption,
improved fuel economy, cast iron sleeve cylinders, dual
air cleaner element, full pressure lubrication, low oil
shutdown, electric start, low noise muffler, fuel pump,
and battery charging circuit.
|
|
The GETEC maintenance free
generator is completely brushless with lifetime
lubricated bearings, and is re-connectable from 120 Volt
to 120/240 Volt. The base is constructed of Heavy Guage
Steel to insure stability between main components.
|
All Modular Design |
Reconnectable 120/240V |
|
|
Lifetime Lubricated Bearings |
B&S Vanguard-OHV Engine |
|
|
Low Oil Shut-Down |
Laminated Low Noise Housing |
|
|
Remote Start-Stop |
Full Pressure Lubrication |
|
|
High Motor Starting |
Dual Element Air Cleaner |
|
|
Industry-Proven Serpentine Belt Drive |
12 Volt Electric Start |
|
|
Electric Engage-Disengage Hydraulic Pump |
Cast Iron Cylinder Sleeves |
|
|
Plug-In DC Wiring |
Fuel Lift Pump |
|
|
Brushless Maintenance Free Generator |
Low Oil Pressure Shutdown |
|
|
Low Engine Speed |
Electronic Ignition |
|
|
Slide Out Tray |
Starter Lock Out |
| Model | Neckar IIa | Neckar IIb | Neckar IIc |
| Watts | 5000 | 6000 | 7000 |
| Volts | 120 V or 120/240 V |
120 V or 120/240 V |
120 V or 120/240 V |
| Horsepower | 18 | 18 | 18 |
| Displacement | 34.75 ci (570 cc) | 34.75 ci (570 cc) | 34.75 ci (570 cc) |
| Hydraulic Pump | 9 GPM at 2000 PSI |
9 GPM at 2000 PSI |
9 GPM at 2000 PSI |
| Dimensions | 29W * 22L * 24H | 29W * 22L * 24 H | 29W * 22L * 24H |
| Weight (Lbs.) | 196 | 206 | 216 |
Various optional equipment, such as remote start-stop instrument panel with tachometer and hourmeter, sound
shield, and various displacement hydraulic pumps are available. Consult with factory.
Routine Maintenance in Minutes!
|
 |
 |
|
|
|
